Our product range

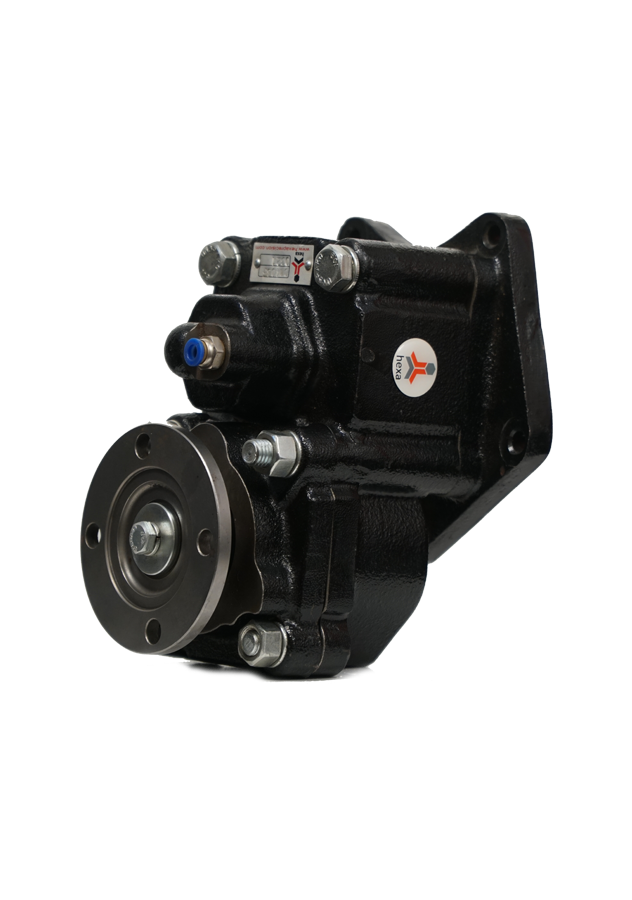

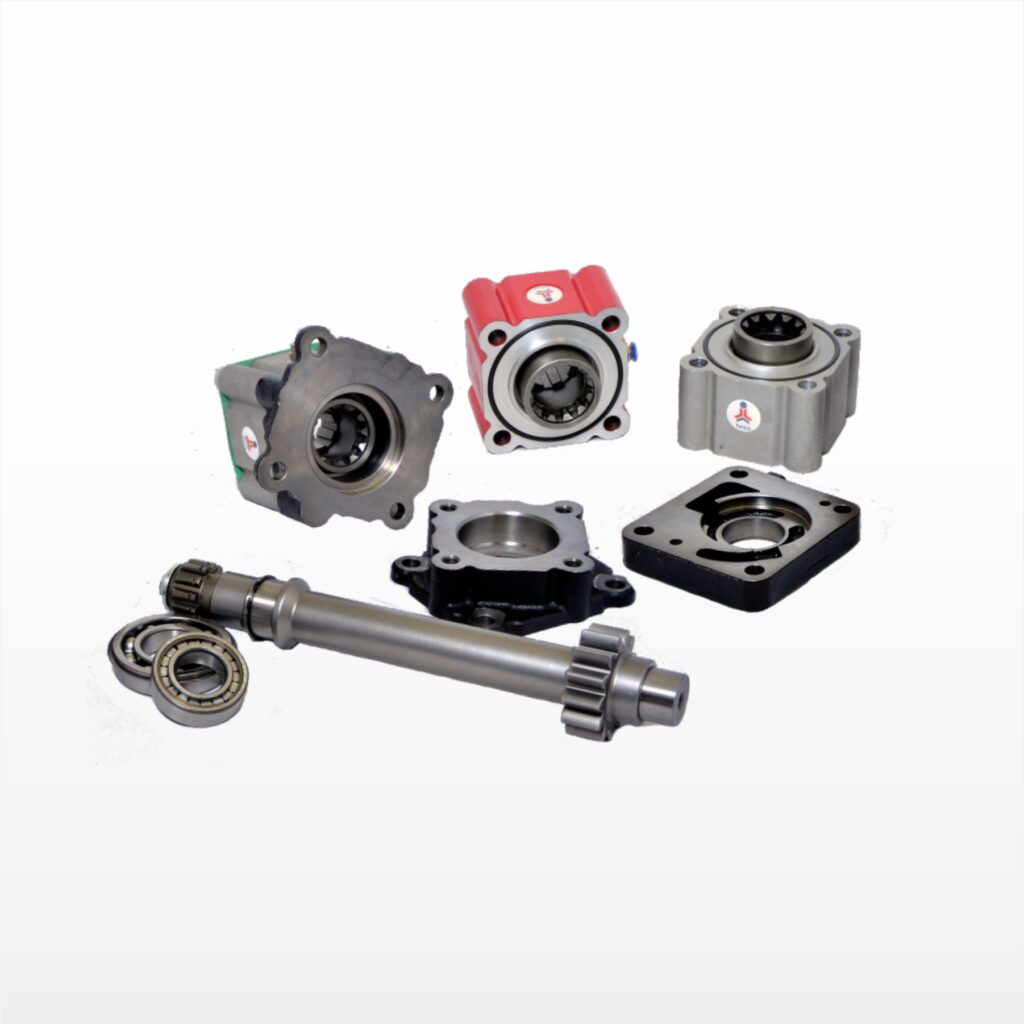

AX1T1 SERIES PTO’S ASSEMBLY

SINGLE GEAR PTO’S

Technical Specification

  • Operating type: Pneumatics 6-8 Bar
  • Mounting type: Rear Mounting
  • Speed RPM: 1000 RPM output
  • Torque: 900 NM
  • Weight: 9.7KG
  • Ratio: 1:1

Fitment Transmission

  • TATA, ZF G1150 Gear box

PTO'S Item list

  • AX1T1 PTO’S Assembly: 01 Nos
  • Mounting Flange 4X4 hole: 01 Nos
  • Mounting Flange OP Plate: 01 Nos
  • Quill Shaft with Bearing Assembly: 01 Nos
  • Interface Plate: 01 Nos
  • Studs Kit: 01 Nos
Download pdf Submit Query

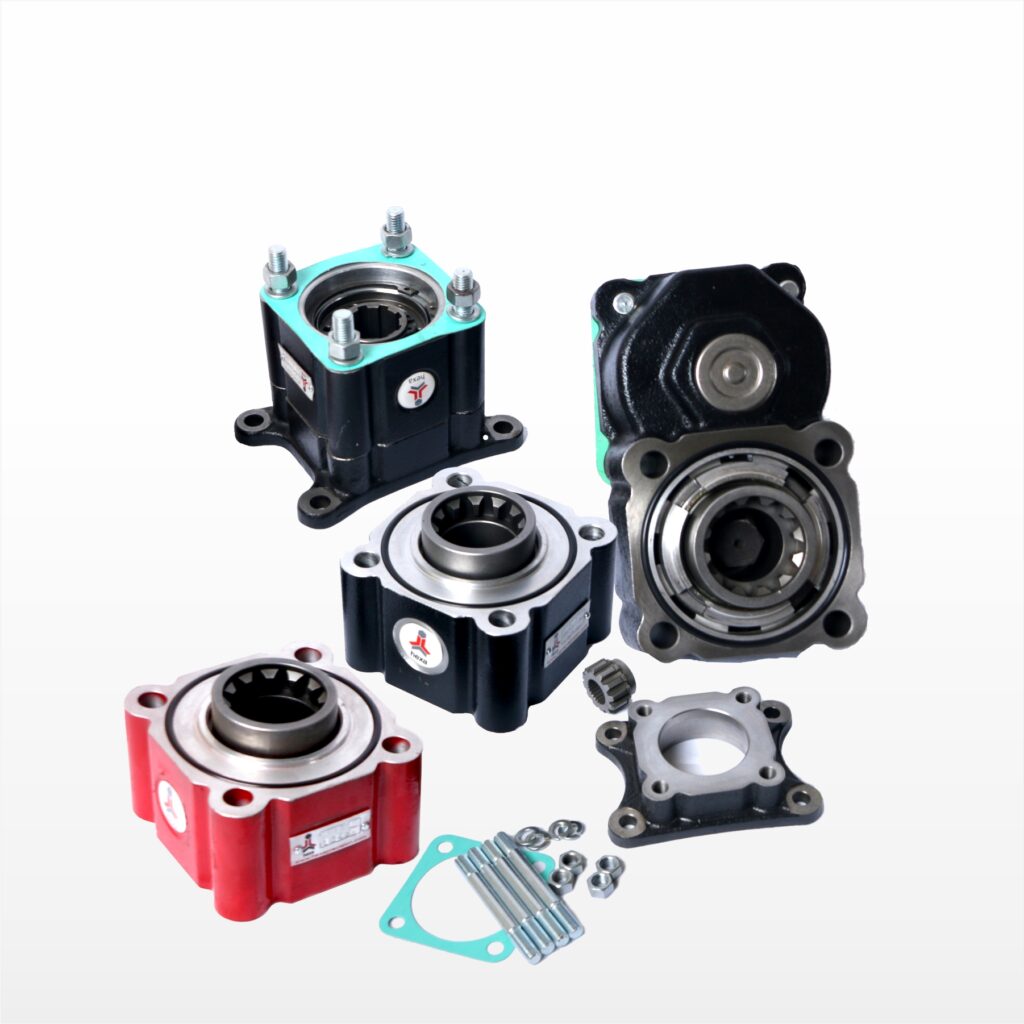

CX1T1 SERIES PTO’S ASSEMBLY

SINGLE GEAR PTO’S

Technical Specification

  • Operating type: Pneumatics 6-8 Bar
  • Mounting type: Rear Mounting
  • Speed RPM: 1000 RPM output
  • Torque: 900 NM
  • Weight: 6.7KG
  • Ratio: 1:1

Fitment Transmission

  • TATA (G950 Gear box)

PTO'S Item list

  • CX1T1 PTO’S Assembly: 01 Nos
  • Mounting Flange 4X4 hole: 01 Nos
  • Coupler Sleeve: 01 Nos
  • Studs Kit: 01 Nos
Download pdf Submit Query

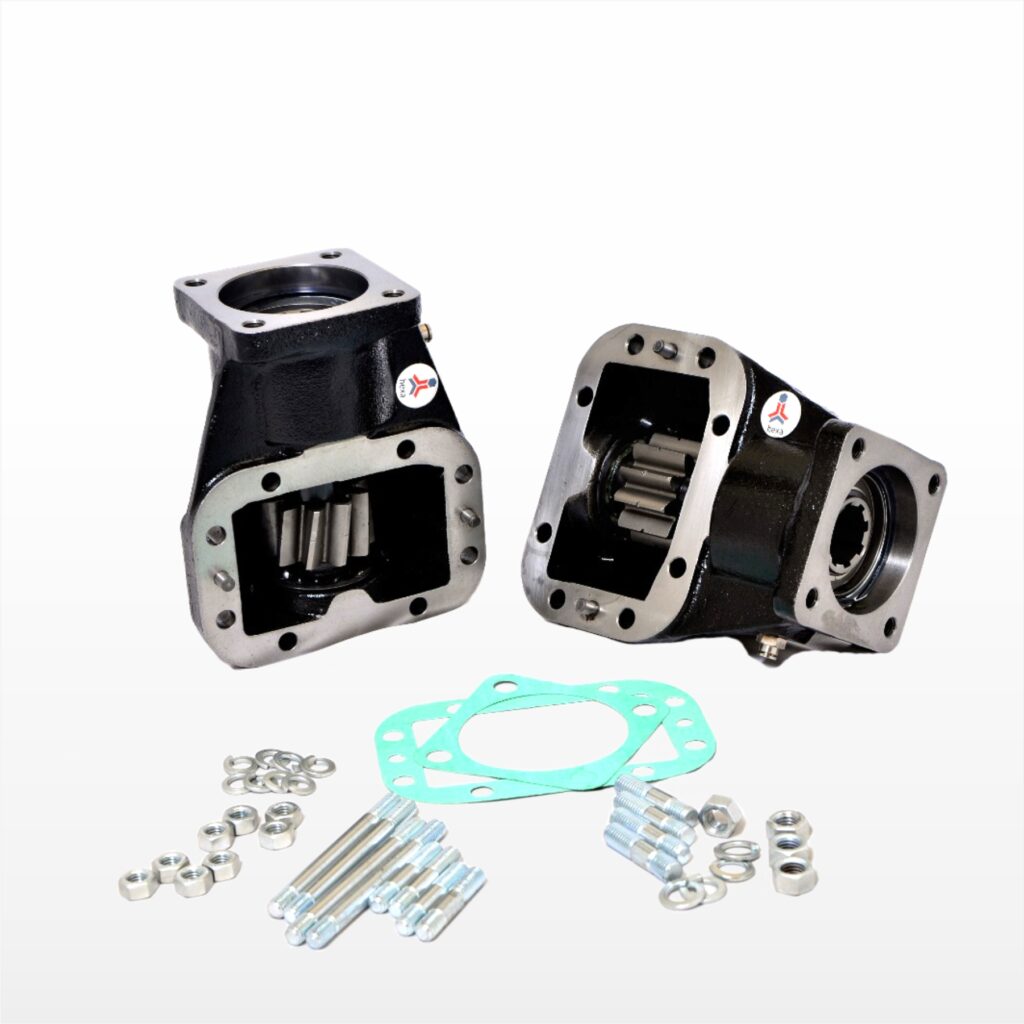

GV0SM SERIES PTO’S ASSEMBLY

DOUBLE GEAR PTO’S

Technical Specification

  • Operating type: Pneumatics 6-8 Bar
  • Mounting type: Rear Mounting
  • Speed RPM: 1040 RPM output
  • Torque: 260 NM
  • Weight: 10.5KG
  • Ratio: 1:2

Fitment Transmission

  • TATA G600, G750 (Helical/Spur)

PTO'S Item list

  • GV0SM PTO’S Assembly (Helical/Spur) 01 Nos
  • Studs Kit: 01 Nos
Download pdf Submit Query

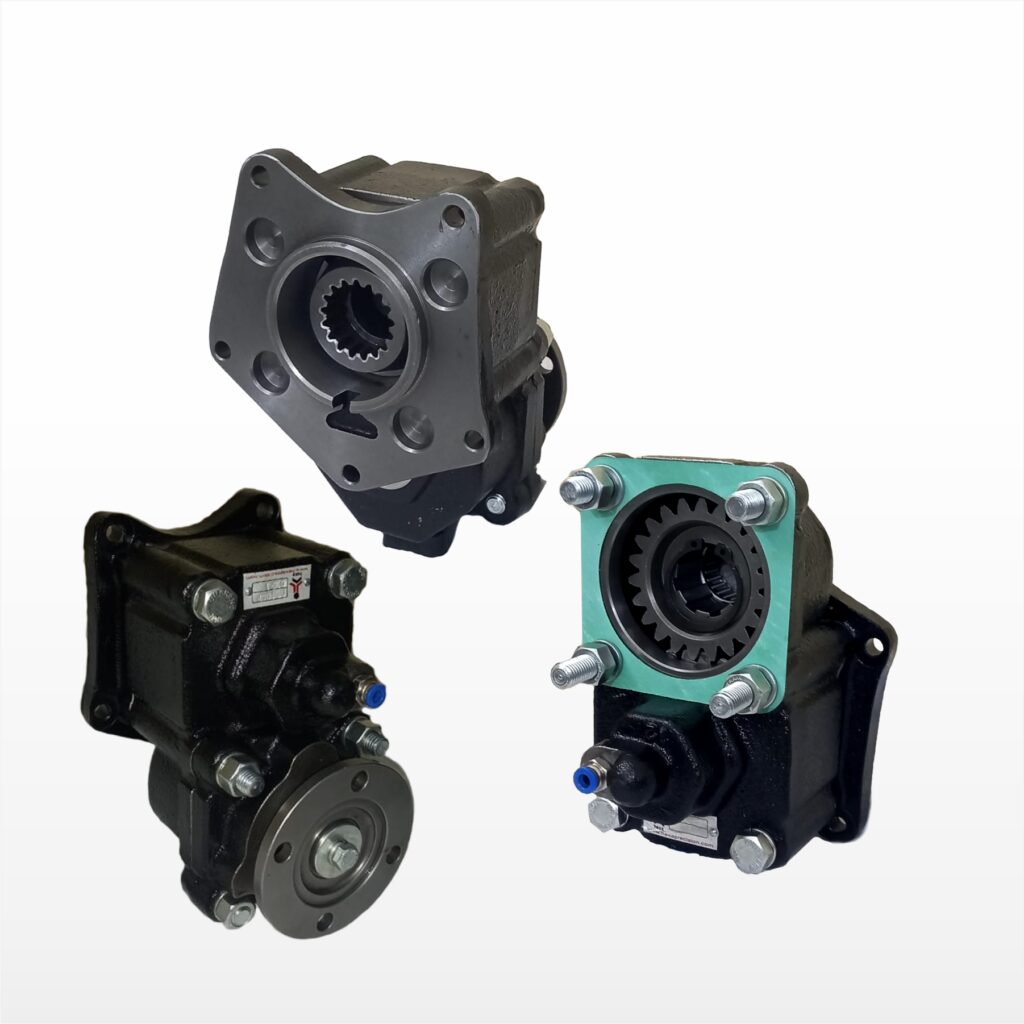

DBOB GBS-40 SERIES PTO’S ASSEMBLY

DOUBLE GEAR PTO’S

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1500 RPM OUTPUT
  • Torque: 280 NM
  • Weight: 8.5KG
  • Ratio: 1:1.5

Fitment Transmission

  • TATA GBS-40

    • PTO'S Item list

    • DBOB PTO’S Assembly 01 Nos
    • Mounting Flange 5x4 Hole. 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

TAC-4 SERIES PTO’S ASSEMBLY

WITH 5cc GEAR PUMP

Technical Specification

  • Operating type: MECHANICAL PUSH-PULL TYPE
  • Mounting type: SIDE MOUNTING
  • Speed RPM: 2000 RPM OUTPUT
  • Torque: 37 NM
  • Weight: 4.5KG
  • Ratio: 1:4

Fitment Transmission

  • TATA ACE - GOLD
    • (G-65 4 Speed Gear Box)

    PTO'S Item list

    • TAC 4 PTO’S Assembly with 5cc Gear Pump 01 Nos
    • Pull-Push Cable 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

TAC-5 SERIES PTO’S ASSEMBLY

WITH 5cc GEAR PUMP

Technical Specification

  • Operating type: MECHANICAL PUSH-PULL TYPE
  • Mounting type: SIDE MOUNTING
  • Speed RPM: 2000 RPM OUTPUT
  • Torque: 37 NM
  • Weight: 5.6KG
  • Ratio: 1:4

Fitment Transmission

  • TATA ACE - INTRA
    • (G-65 5 Speed Gear Box)

    PTO'S Item list

    • TAC 5 PTO’S Assembly with 5cc Gear Pump 01 Nos
    • Pull-Push Cable 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

DBOB SERIES PTO’S ASSEMBLY

(DOUBLE GEAR PTO’S)

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1500 RPM OUTPUT
  • Torque: 280 NM
  • Weight: 8.5KG
  • Ratio: 1:1.5

Fitment Transmission

  • ZF (6S36/6S850,9S1110 Gear Box)

    • PTO'S Item list

    • DBOB PTO’S Assembly 01 Nos
    • Quill Shaft with Bearing Assembly 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

AX19S SERIES PTO’S ASSEMBLY

(SINGLE GEAR PTO’S)

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1000 RPM OUTPUT
  • Torque: 900 NM
  • Weight: 6.7KG
  • Ratio: 1:1

Fitment Transmission

  • ZF ( ZF-9S1110 Gear Box)

PTO'S Item list

  • AX19S PTO’S Assembly 01 Nos
  • Quill Shaft with Bearing Assembly 01 Nos
  • 4 Hole flange with shims & Studs Kit: 01 Nos
Download pdf Submit Query

EATON DBOB SERIES PTO’S ASSEMBLY

DOUBLE GEAR PTO’S

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1500 RPM OUTPUT
  • Torque: 280 NM
  • Weight: 8.5KG
  • Ratio: 1:1.5

Fitment Transmission

  • EATON
    • (6209, 6306 & 10309 Gear Box)

    PTO'S Item list

    • DBOB PTO’S Assembly with DC Flange 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

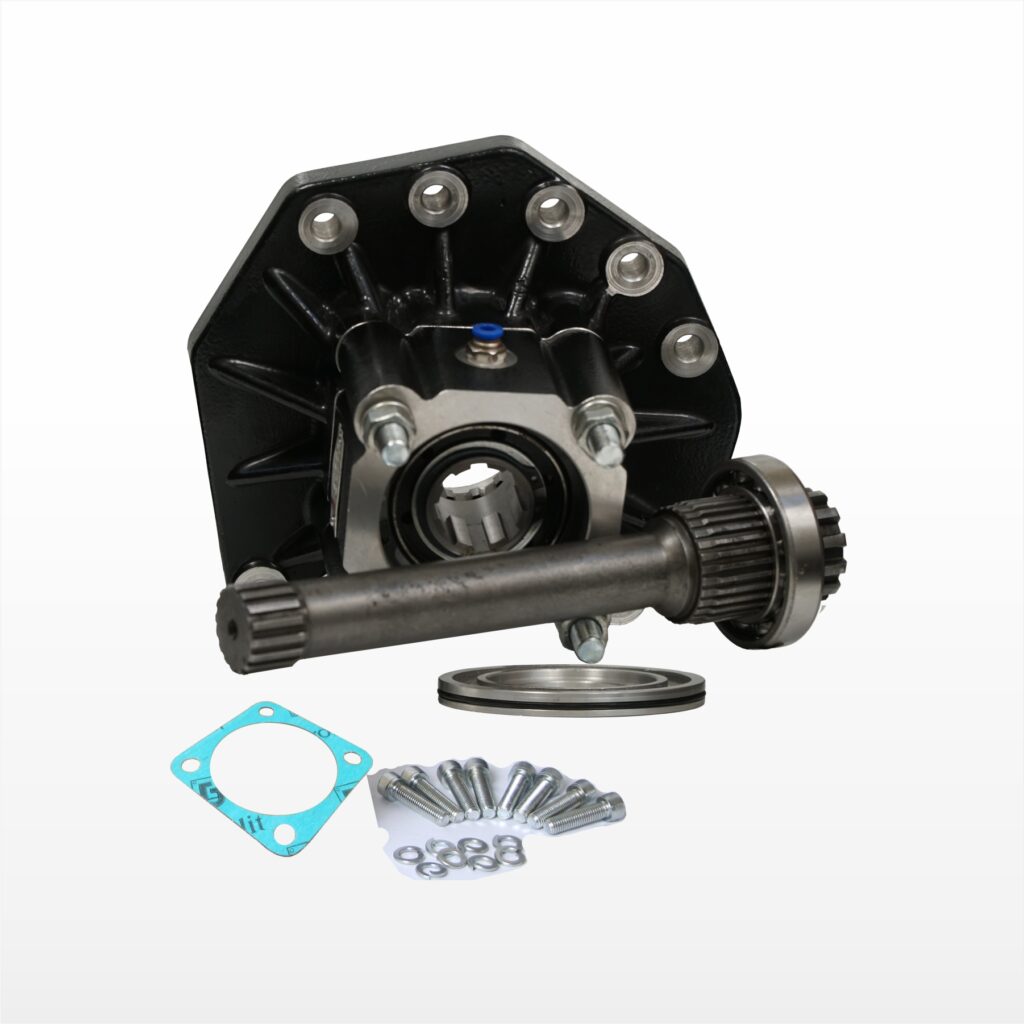

AX131 SERIES PTO’S ASSEMBLY

(SINGLE GEAR PTO’S)

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1460 RPM OUTPUT
  • Torque: 900 NM
  • Weight: 10.5KG
  • Ratio: 1:1

Fitment Transmission

  • BharatBenz-G131

    • PTO'S Item list

    • Ax131 PTO’S Assembly with 8-H Flange. 01 Nos
    • Quill Shaft Bearing Assembly 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

DBOB131 SERIES PTO’S

LOOSE GEAR ASSEMBLY

Technical Specification

  • Operating type: PNEUMATICS 6-8 BAR
  • Mounting type: REAR MOUNTING
  • Speed RPM: 1460 RPM OUTPUT
  • Torque: 280 NM
  • Weight: 12.5KG
  • Ratio: 1:1.32

Fitment Transmission

  • BharatBenz-G131

    • PTO'S Item list

    • DBOB131 PTO’S Loose Gear Assembly With 8-H Flange. 01 Nos
    • Quill Shaft Bearing Assembly 01 Nos
    • Studs Kit: 01 Nos
    Download pdf Submit Query

DBOB-G85 SERIES PTO'S

LOOSE GEAR ASSEMBLY

Technical Specification

  • Operating type: Pneumatics 6-8 Bar
  • Mounting type: Rear Mounting
  • Speed RPM: 1460 RPM output
  • Torque: 260 NM
  • Weight: 8.5KG
  • Ratio: 1:1.32

Fitment Transmission

  • BharatBenz-G85

PTO'S Item list

  • Series PTO'S Loose Gear Assembly with 6-H Flange 01 Nos
  • Studs Kit: 01 Nos
Download pdf Submit Query

ALD-5 SERIES PTO’S ASSEMBLY

5cc GEAR PUMP

Technical Specification

  • Operating type: MECHANICAL PUSH-PULL TYPE
  • Mounting type: SIDE MOUNTING
  • Speed RPM: 600 RPM OUTPUT
  • Torque: 100 NM
  • Weight: 5.5KG
  • Ratio: 1:74

Fitment Transmission

  • ASHOK LEYLAND-DOST RSB Gear Box

PTO'S Item list

  • ALD-5 PTO'S Assembly with 5cc Gear Pump 01 Nos
  • Pull-Push Cable 01 Nos
  • Studs Kit: 01 Nos
Download pdf Submit Query
